Eco Friendly Heating

Underfloor Heating Element Ecofilm Set 500mm

Underfloor Heating Element Ecofilm Set 500mm

£42.66 GBP
£42.66 GBP
Sale Sold out

Key Features:

  • Features
  • £42.66 – £133.50
  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm
  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use
  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO
Taxes included. Shipping calculated at checkout.
PRODUCT CODE / AREA OUTPUT (W) LENGTH (M) PRICE
ES13-520 122W 2.0M
£42.66 GBP
ES13-525 153W 2.5M
£48.36 GBP
ES13-530 183W 3.0M
£54.02 GBP
ES13-535 214W 3.5M
£59.70 GBP
ES13-540 244W 4.0M
£65.38 GBP
ES13-545 275W 4.5M
£71.06 GBP
ES13-550 306W 5.0M
£76.64 GBP
ES13-555 336W 5.5M
£82.42 GBP
ES13-560 367W 6.0M
£88.08 GBP
ES13-565 397W 6.5M
£93.78 GBP
ES13-570 428W 7.0M
£99.44 GBP
ES13-575 458W 7.5M
£105.12 GBP
ES13-580 489W 8.0M
£110.80 GBP
ES13-585 519W 8.5M
£116.48 GBP
ES13-590 550W 9.0M
£122.16 GBP
ES13-595 580W 9.5M
£127.84 GBP
ES13-5100 611W 10.0M
£133.50 GBP

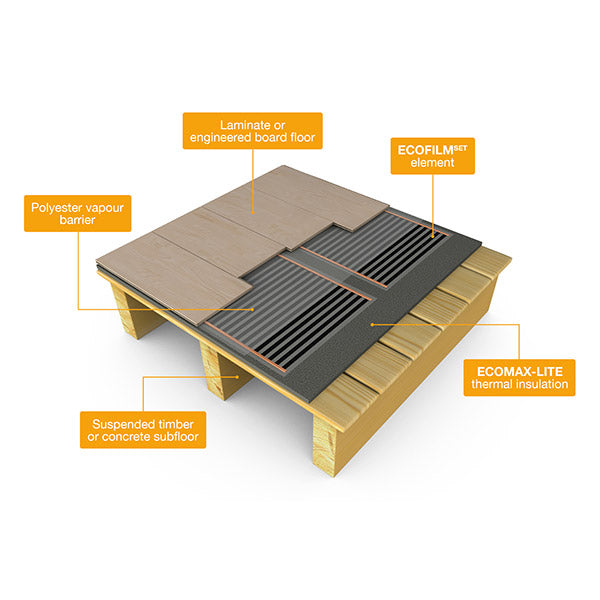

ECOFILMSET Underfloor Heating Elements offer simple and fast installation, with no need for self levelling compound.

The set is available in three different widths with standard lengths up to 10m. The element lengths can be reduced on site if necessary and are supplied as standard with 5m “cold tails”. Available in two standard power dissipations: 130 Watt for internal living areas and 160 Watts for conservatory use.

ECOFILMSET is NOT designed for use in wet areas such as bathrooms or shower rooms.

Features

  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm
  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use
  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO

Technical Specifications:

  • Construction: Carbon based flexible heating element
  • Operating voltage: 230, 50Hz
  • Output rating 130W/m2
  • Available in 3 widths: 300mm, 500mm & 1000mm
  • Element Length: 2.0m to 10m in 0.5m increments
  • Cold tail Lengths: 5m
