Eco Friendly Heating

Underfloor Heating Element Ecofilm Set 300mm

Underfloor Heating Element Ecofilm Set 300mm

£33.58 GBP
£33.58 GBP
Sale Sold out

Key Features:

  • Features
  • £33.58 – £88.08
  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm
  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use
  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO
Taxes included. Shipping calculated at checkout.
PRODUCT CODE / AREA OUTPUT (W) LENGTH (M) PRICE
ES13-320 70W 2M
£33.58 GBP
ES13-325 88W 2.5M
£37.00 GBP
ES13-330 105W 3.0M
£40.40 GBP
ES13-335 123W 3.5M
£43.88 GBP
ES13-340 140W 4.0M
£47.22 GBP
ES13-345 158W 4.5M
£50.62 GBP
ES13-350 176 5.0M
£54.02 GBP
ES13-355 193W 5.5M
£57.42 GBP
ES13-360 211W 6.0M
£60.84 GBP
ES13-365 228W 6.5M
£64.24 GBP
ES13-370 246W 7.0M
£67.64 GBP
ES13-375 263W 7.5M
£71.06 GBP
ES13-380 281W 8.0M
£74.46 GBP
ES13-385 298W 8.5M
£77.88 GBP
ES13-390 316W 9.0M
£81.26 GBP
ES13-395 333W 9.5M
£84.68 GBP
ES13-3100 351W 10.0M
£88.08 GBP

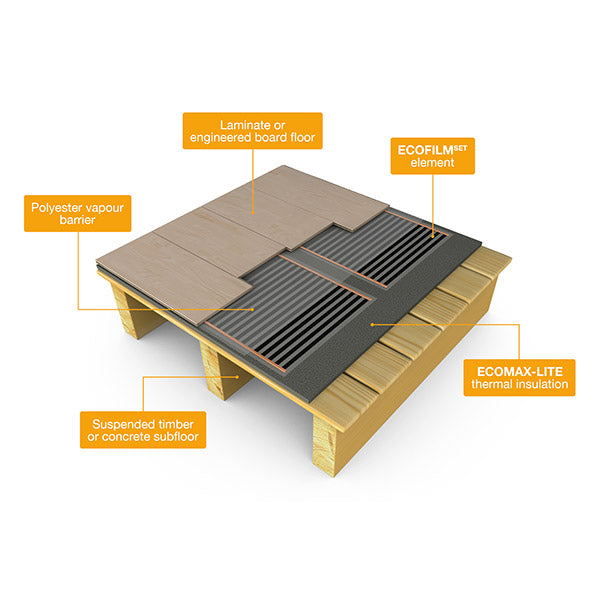

ECOFILMSET Underfloor Heating Elements offer simple and fast installation, with no need for self levelling compound.

The set is available in three different widths with standard lengths up to 10m. The element lengths can be reduced on site if necessary and are supplied as standard with 5m “cold tails”. Available in two standard power dissipations: 130 Watt for internal living areas and 160 Watts for conservatory use.

ECOFILMSET is NOT designed for use in wet areas such as bathrooms or shower rooms.

Features

  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm
  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use
  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO

Technical Specifications:

  • Construction: Carbon based flexible heating element
  • Operating voltage: 230, 50Hz
  • Output rating 130W/m2
  • Available in 3 widths: 300mm, 500mm & 1000mm
  • Element Length: 2.0m to 10m in 0.5m increments
  • Cold tail Lengths: 5m
