Herschel Power 3.2 – 6.4kW Workshop Heater

Description

The Power industrial heater range provides a zero light infrared heating solution designed to heat large spaces such as warehouses, factories, sports halls, workshops and other commercial spaces.

Designed and manufactured by Herschel in the UK and constructed from aluminium, the Power industrial workshop heater can be used to heat entire buildings or zones within large spaces. An ideal replacement to gas powered heating systems, the Power range is CO2 free when powered by renewable energy and can play a key part in delivering corporate net zero targets.

When used in zones within large spaces and properly controlled, significant energy savings can be achieved from the Power industrial workshop heater compared to traditional convection based space heating system as the heater can be used to directly warm people within an open area, for example packing bays, workstations. Alternatively the heaters can be used to heat an entire room within an enclosed space.

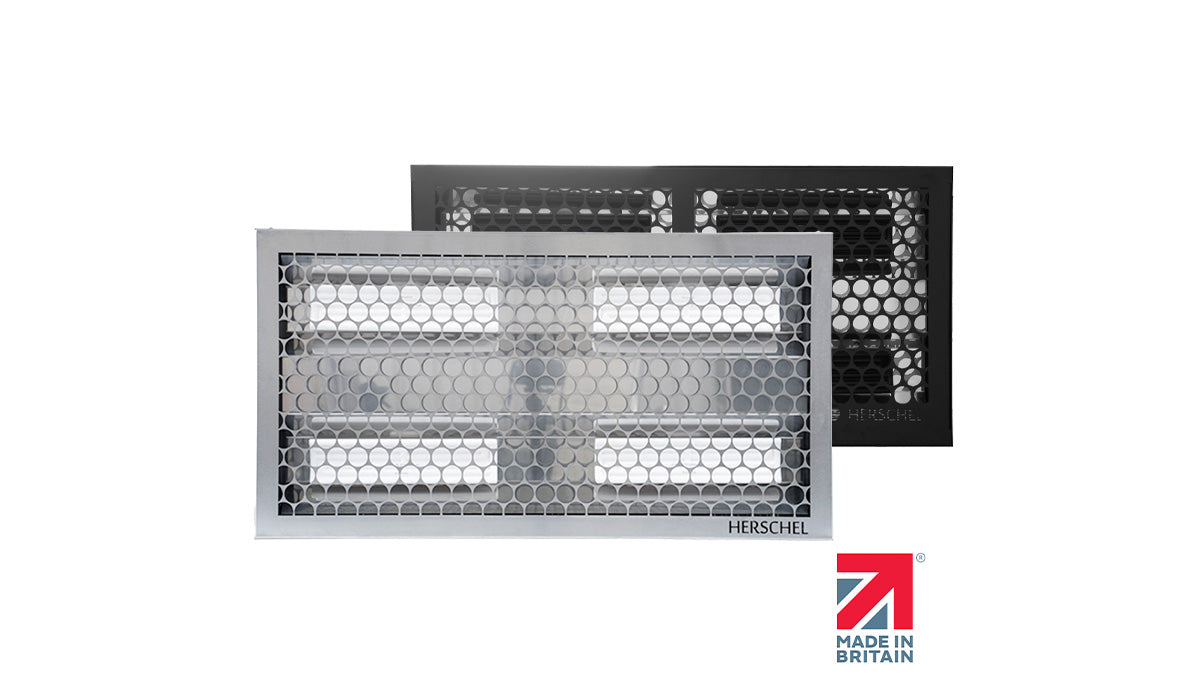

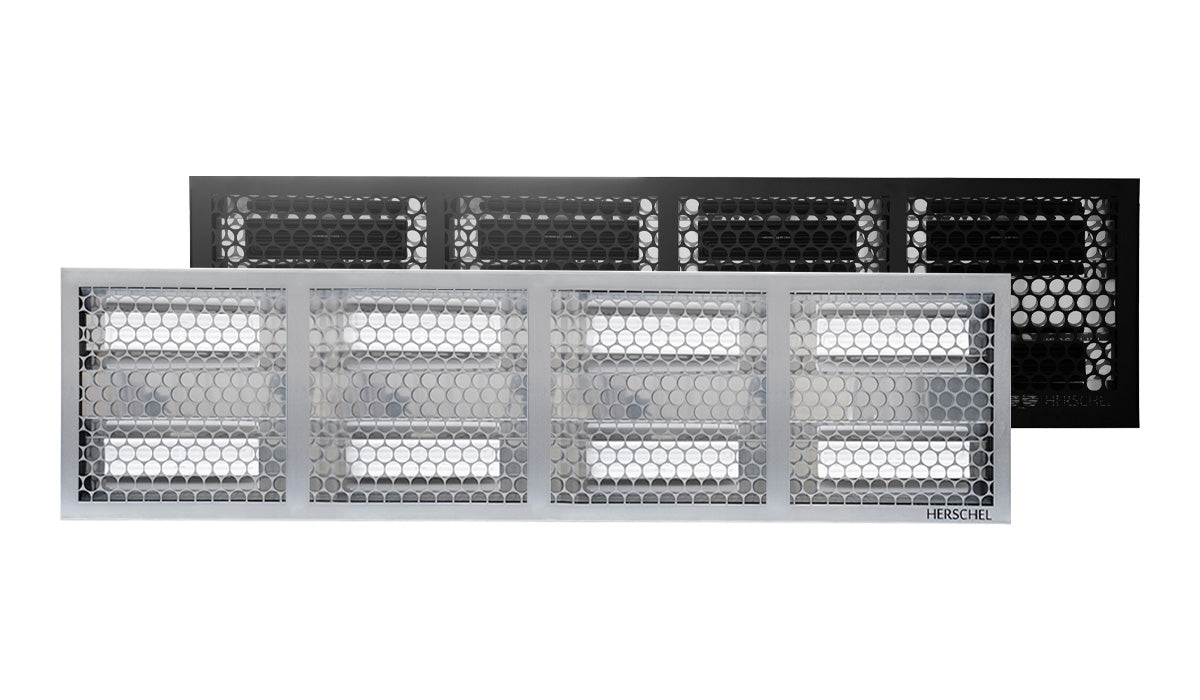

The Power range consists of 3 sizes, 3.2kW, 4.8kW and 6.4kW and is available in a choice of two colour finishes, silver and powder-coated black. The heaters are wired in 2 circuits allowing 2 power levels of 50% and 100% power levels when used with APX controllers. Heaters work on single phase 220-240v supply.

Herschels advanced APX control options include motion sensors, thermostat controls, timer switches and BMS integration.

For simple operation of single heaters we offer a 2 power level switch for manual operation providing ON/OFF, 50% and 100% power.

Power range has no moving parts, is maintenance free and totally silent. The Power range utilises long life ceramic emitters which produce a zero light far infrared heat which radiates downwards and can form a zone of gentle heat. The emitters have a typical lifespan of 7.000-10,000 hours and can be easily be replaced in situ by a competent electrician. The Power industrial workshop heater is close to 100% recyclable at end of life and is supplied in recyclable packaging.

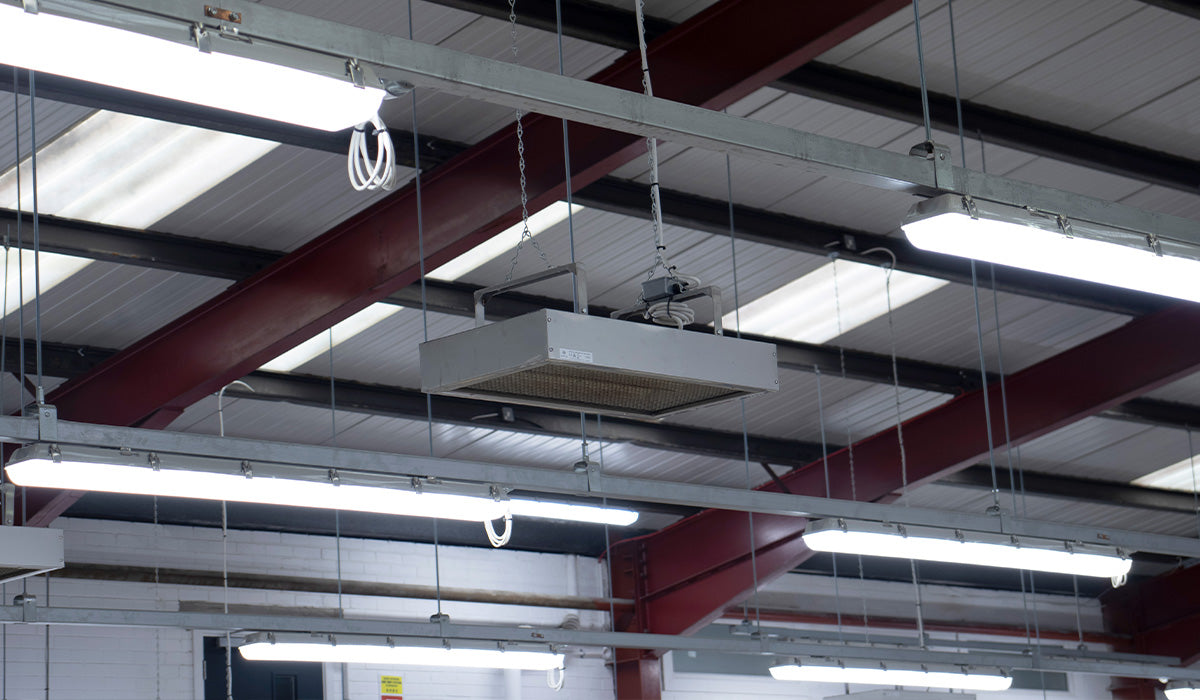

Power range is designed to be suspended from ceilings (note the suspension kit is not supplied).

Heat intensity and area heated will vary by mounting height.
Please contact Eco Friendly Heating for assistance and help in choosing a detailed quote a heating system that meets your requirements.

Note: Emitters can give off a slight orange glow at higher voltages.

For larger commercial projects we would always recommend a site survey or for a detailed desktop assessment to be carried out. Please contact Eco Friendly Heating ASAP if you require this service.

Technical Specifications:

• Technical Specifications
• Heater Type: Fixed electric high temperature infrared heater
• Surface: Aluminium body with protective grill
• Colour: Silver or Black
• Cable Length: No cable
• Plug: No Plug
• Voltage: 220 - 240V 50 Hz
• Protection Class: IP20
• Installation: Ceiling-mounted only
• Heating Element: 4 - 8 x Herschel Kanthal AF glazed ceramic emitters
• Reflector: Aluminium
• Warm-up Time: <10 Minutes
• Useful Wavelength: 3 - 10µm
• Heated Zones are specified in the individual product specifications above. Herschel Power heaters will directly heat people and objects in the heated zone (note: air movement may reduce area coverage). If high levels of comfort are required, the radiators will need to be positioned so that they overlap zones to eliminate cold spots between zones. Air movement such as that from shuttered doors, high ceiling heights or large volumes of cold air adjacent to the heated zone will reduce the area covered/temperatures that can be achieved. In enclosed areas, the thermal mass of the building will be heated, which will increase ambient temperatures within the heated zones. The extent to which ambient temperatures can be increased and the running time required of the heaters to achieve this will depend on the construction of the property, age, insulation levels and cubic volume, external temperature and local climatic conditions. For larger commercial projects or where different mounting heights are required, we always recommend that Herschel carry out an office survey or assessment.
• EU/ UK Electrical Safety: For Commercial Use Only
• Restriction of Hazardous Substances (RoHS): IEC62321
• Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls
• Warranty: 5 Years
• Note: This unit is not suitable for household or similar use. Warranty excludes Ceramic Elements 12 months.
